Mobile storage carts - keep your stuff in easy reach!
Mobile Storage Carts

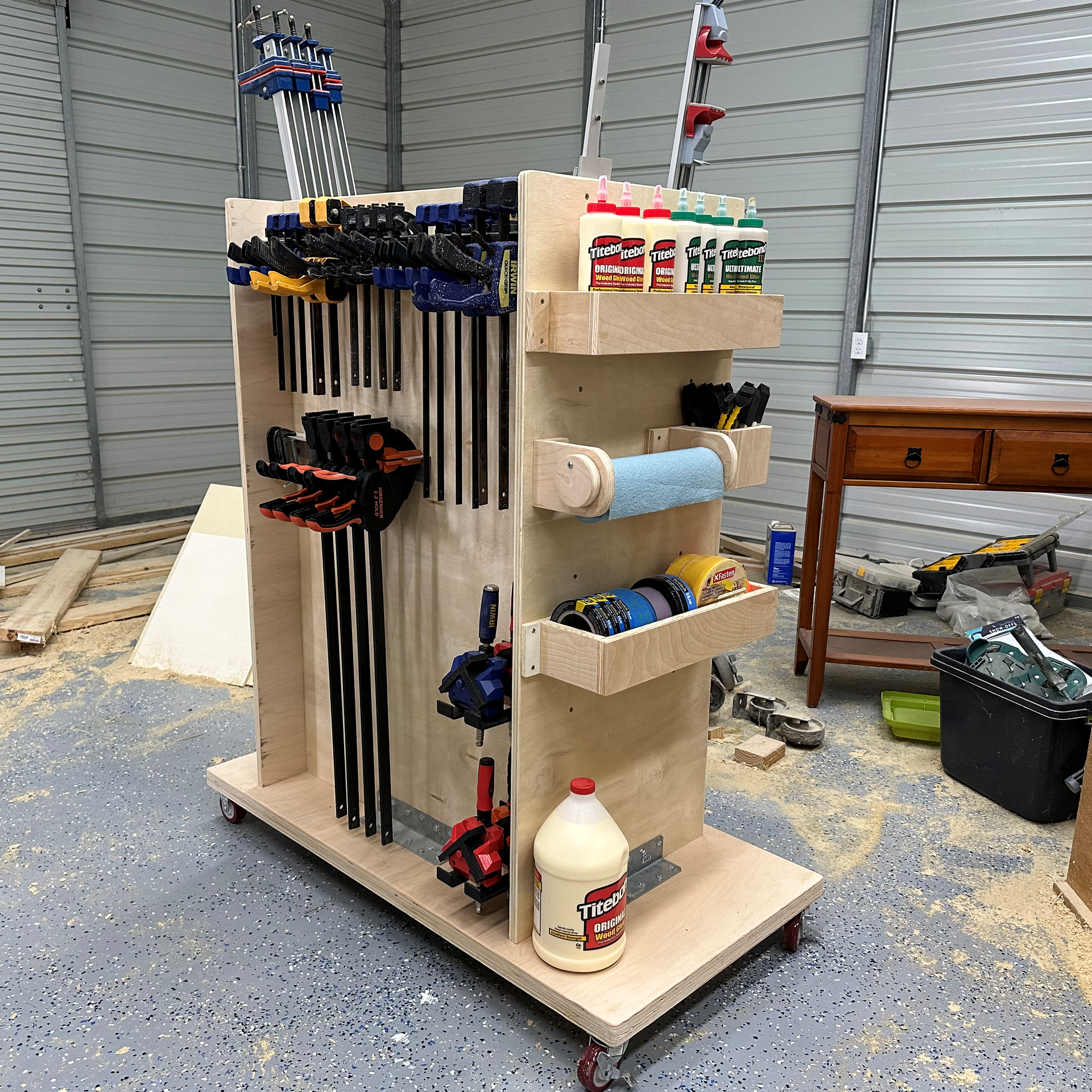

Mobile Clamp Storage Cart
Clamps mounted with steel brackets

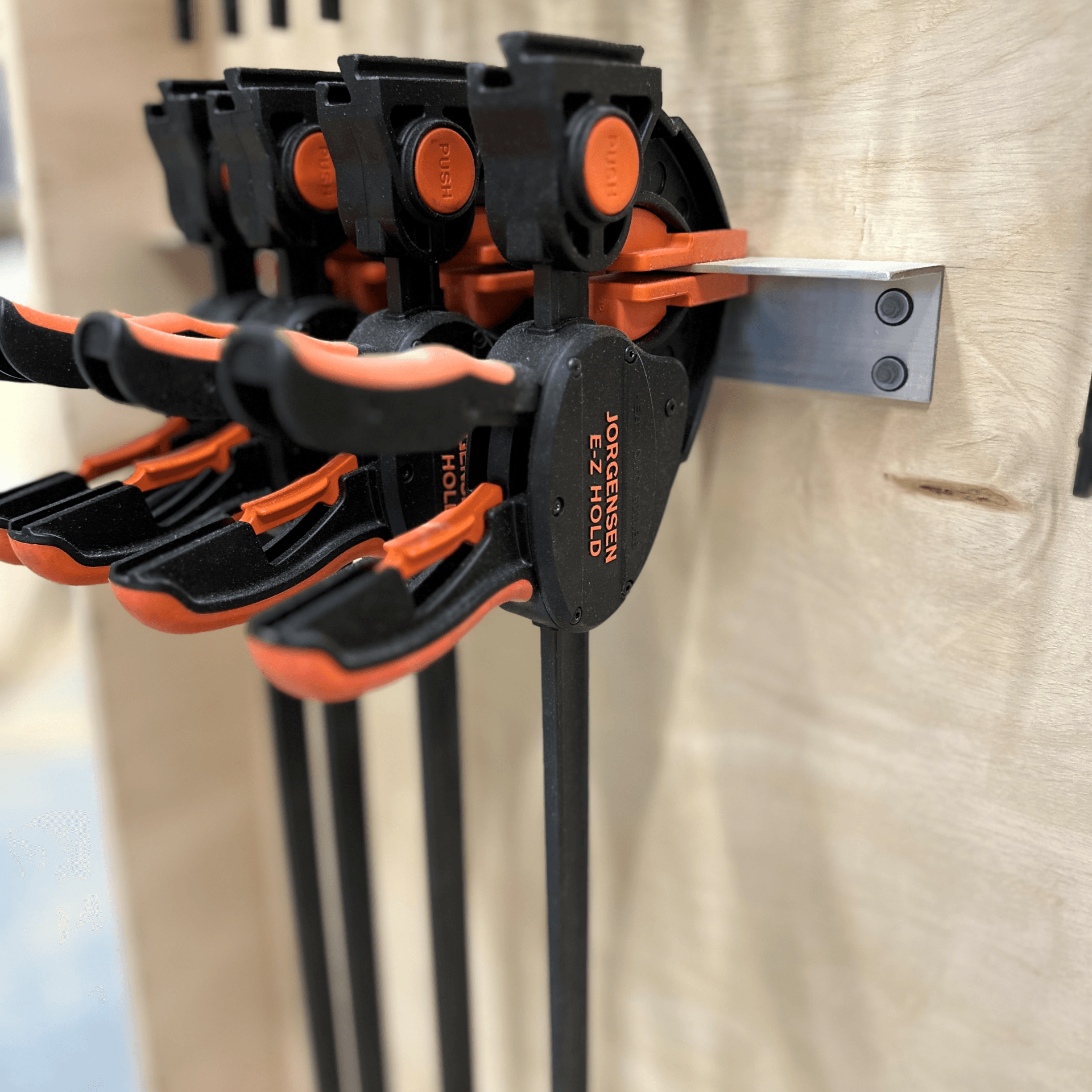

Clamps fixed to an aluminum angle

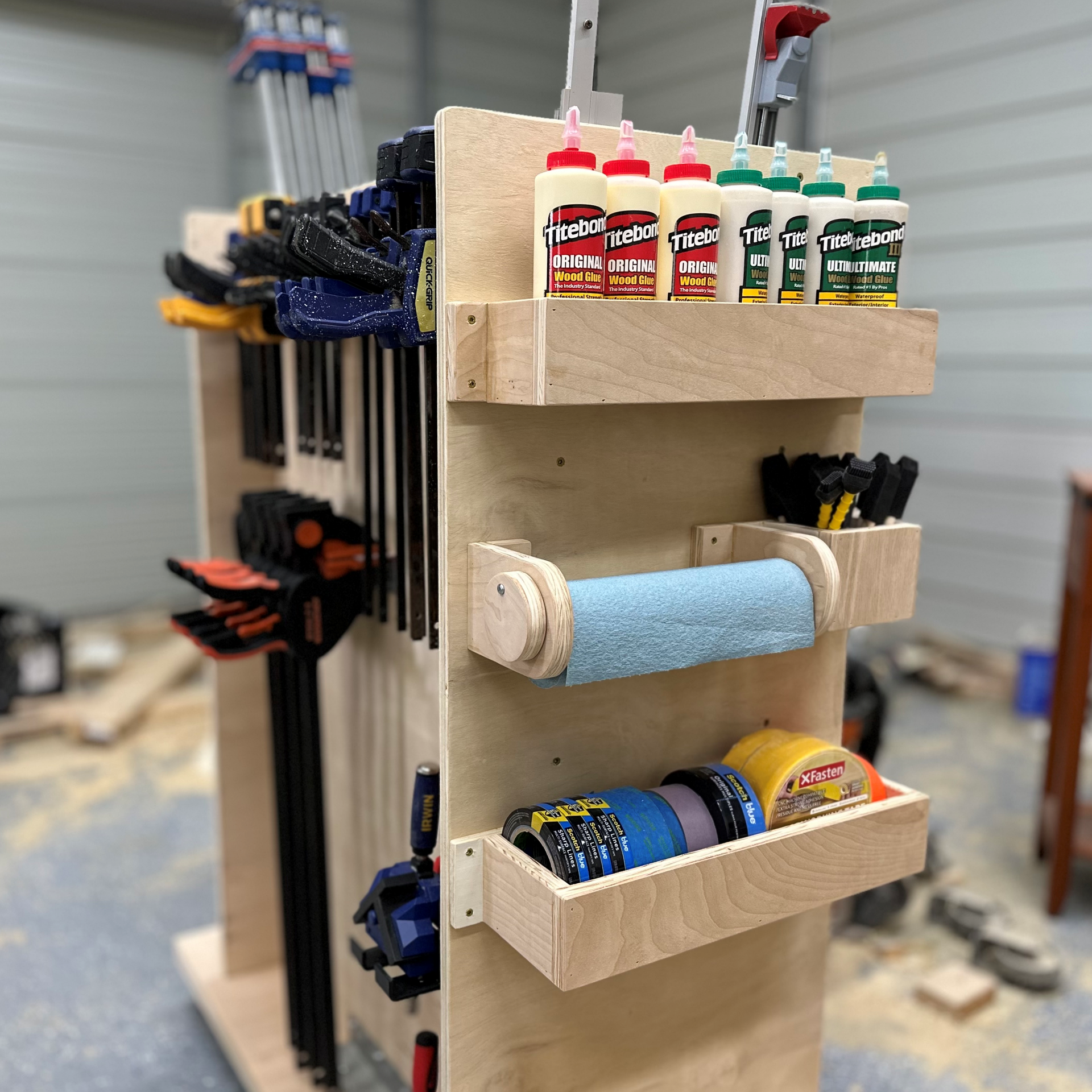

Storage for glue, towels, brushes and tape.

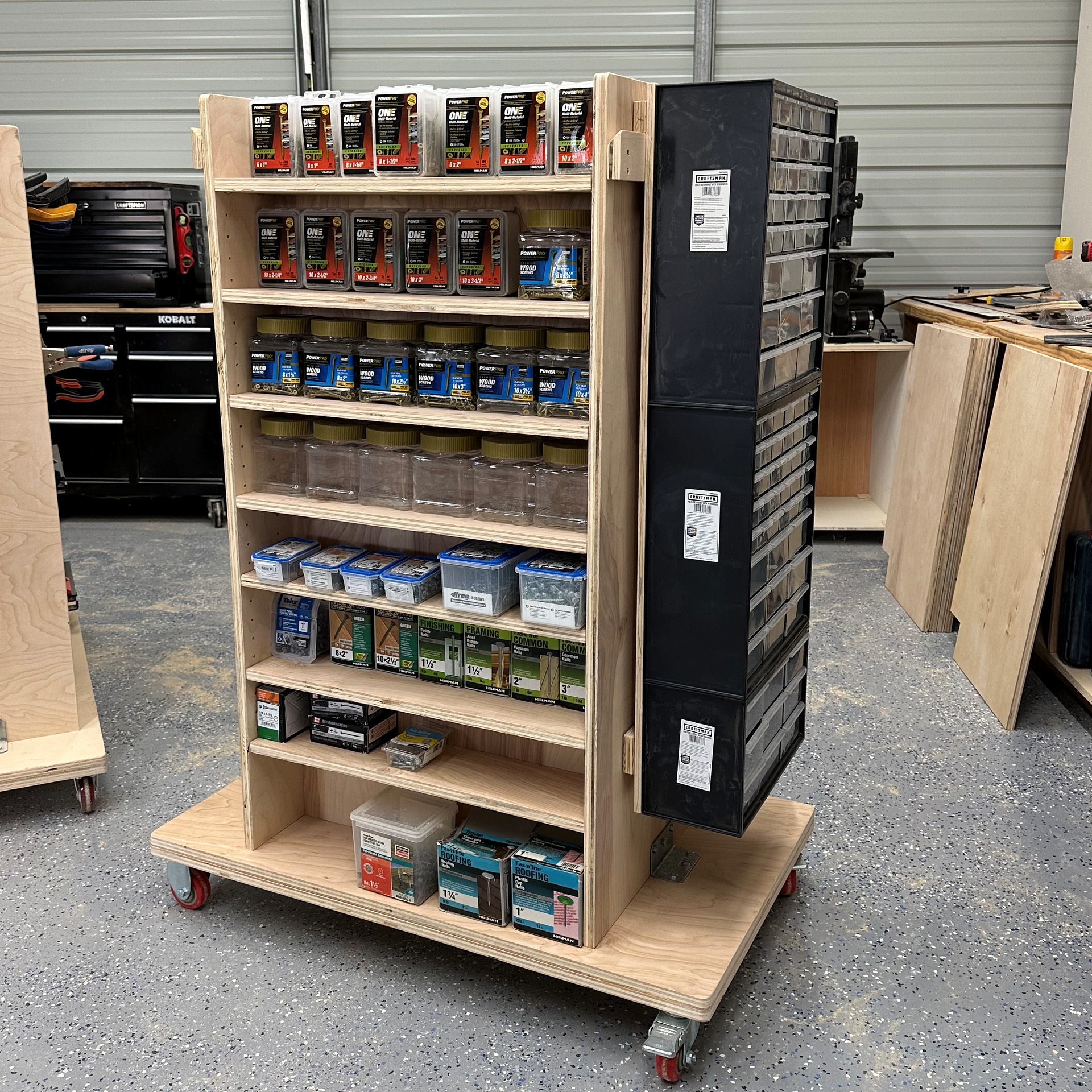

Mobile Small Parts Storage Cart

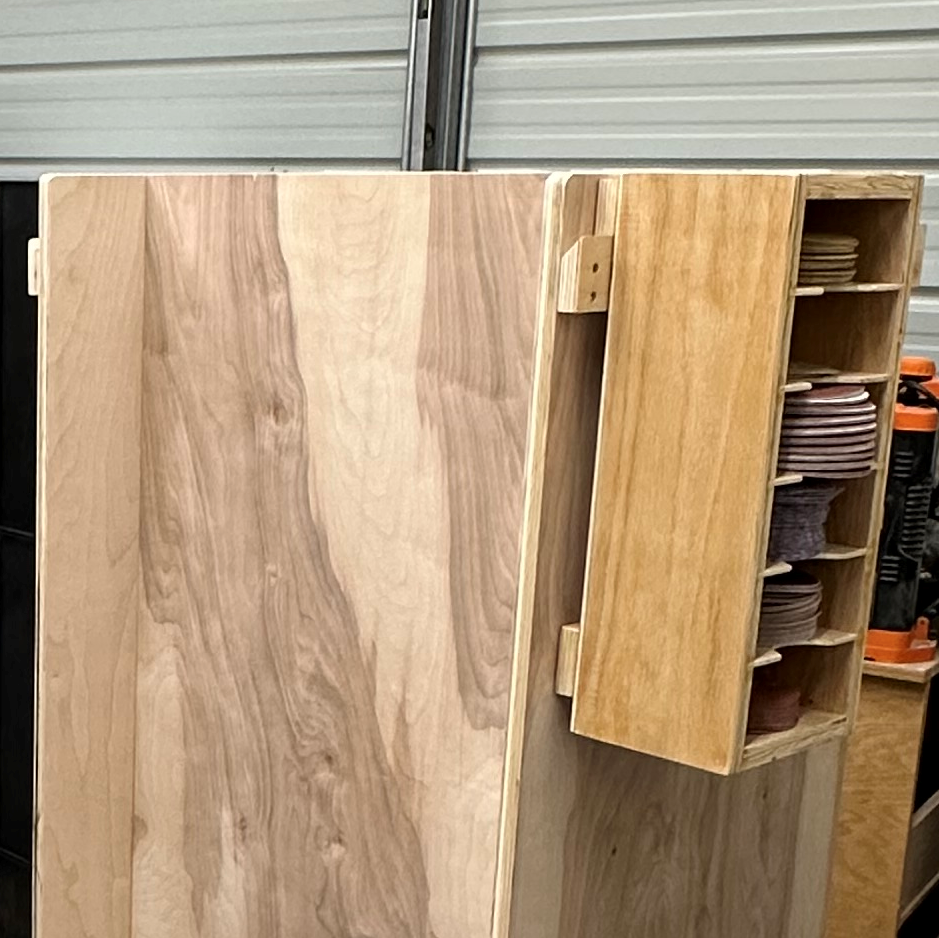

Sanding disc storage
Mobile storage carts can be made to store all sorts of stuff.
The bases of the carts are made from two pieces of 3/4" plywood glued together for double thickness. The cart bases have two 3" fixed casters one end and two 3" swivel locking casters the other end. The sides/ends are also 3/4" plywood fixed to a 2x4 frame at the bottom and reinforced with steel brackets for additional strength.
The Mobile Clamp Storage Cart allows clamps and all things "glue-up" to be stored in a single, yet mobile location. The cart can be moved to wherever it is needed for convenience during glue-up then moved out the way when not in use. Some of the clamps are simply clamped to a 2 x 1/8" aluminum angle, the other clamps are supported by 6" steel shelf brackets. Both the glue holder and paper towel holder are made from 3/4" plywood. To replace the paper towel simply swing the circular stop out of the way to remove the dowel rod.
The Small Parts Storage Cart lets you bring your fasteners and fixings to where you are working. Adjustable shelves keep screws organized. A storage drawer system is mounted by a French cleat on one end, the other end has a small storage rack for sanding discs, also mounted using a French cleat.
